    ASME B18.2.3.5M Metric Hex Bolts – Dimensions, Specifications & Standards

    Metric Hex Bolts – Dimensional Standard for Metric Hex Bolting.

    ASME B18.2.3.5M Metric Hex Bolts are metric-series externally threaded fasteners with dimensional requirements for head height, width across flats, width across corners, body diameter, thread pitch, thread length, and bolt length tolerances in SI units — the standard reference for metric hex bolting in systems interfacing with global equipment. These bolts are widely used in pressure equipment, structural steelwork, machinery, and process piping requiring metric standards. They are used with ASTM A1014/A1014M for UNS N07718 (Inconel 718) bolting in service environments demanding exceptional tensile strength and corrosion resistance, including offshore, petrochemical, and power generation. The metric counterpart to ASME B18.2.1 Hex Bolts, they are also available in a broad range of ASTM alloy steel, stainless steel, and nonferrous grades. B18.2.3.5M addresses dimensional tolerances only, with mechanical requirements governed by the paired ASTM specification.

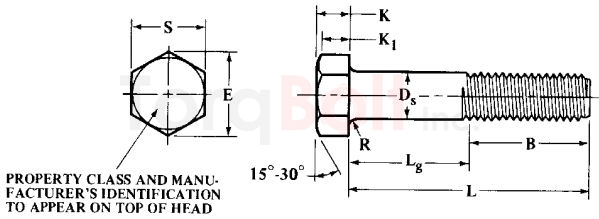

    ASME B18.2.3.5M Hex Bolts

    ASME B18.2.3.5m Hex Bolts Dimensions


    Nominal Dia., D and Thread Pitch Body Diameter, Ds Width Across Flats, S Width Across Corners, E Head Height, K Wrenching Height, K1 For Bolt Lengths
    < 125 mm > 125 and < 200 mm < 200 mm
    Max Min Max Min Max Min Max Min Min Basic Thread Length, a B
    M5 × 0.8 5.48 4.52 8 7.64 9.24 8.63 3.58 3.35 2.4 16 22 35
    M6 × 1 6.19 5.52 10 9.64 11.55 10.89 4.38 3.55 2.8 18 24 37
    M8 × 1.25 8.58 7.42 13 12.57 15.01 14.2 5.68 5.1 3.7 22 28 41
    ANSI B18.2.3.5M - bM10 × 1.5 10.58 9.42 15 14.57 17.32 16.46 6.85 6.17 4.5 26 32 45
    M10 × 1.5 10.58 9.42 16 15.57 18.48 17.59 6.85 6.17 4.5 26 32 45
    M12 × 1.75 12.7 11.3 18 17.57 20.78 19.85 7.95 7.24 5.2 30 36 49
    M14 × 2 14.7 13.3 21 20.16 24.25 22.78 9.25 8.51 6.2 34 40 53
    M16 × 2 16.7 15.3 24 23.16 27.71 26.17 10.75 9.68 7 38 44 57
    M20 × 2.5 20.84 19.16 30 29.16 34.64 32.95 13.4 12.12 8.8 46 52 65
    M24 × 3 24.84 23.16 36 35 41.57 39.55 15.9 14.56 10.5 54 60 73
    M30 × 3.5 30.84 29.16 46 45 53.12 50.55 19.75 17.92 13.1 66 72 85
    M36 × 4 37 35 55 53.8 63.51 60.79 23.55 21.72 15.8 78 84 97
    M42 × 4.5 43 41 65 62.9 75.06 71.71 27.05 25.03 18.2 90 96 109
    M48 × 5 49 47 75 72.6 86.6 82.76 31.07 28.93 21 102 108 121
    M56 × 5.5 57.2 54.8 85 82.2 98.15 93.71 36.2 33.8 24.5 ... 124 137
    M64 × 6 65.52 62.8 95 91.8 109.7 104.65 41.32 38.68 28 ... 140 153
    M72 × 6 73.84 70.8 105 101.4 121.24 115.6 46.45 43.55 31.5 ... 156 169
    M80 × 6 82.16 78.8 115 111 132.79 126.54 51.58 48.42 35 ... 172 185
    M90 × 6 92.48 88.6 130 125.5 150.11 143.07 57.74 54.26 39.2 ... 192 205
    M100 × 6 102.8 98.6 145 140 167.43 159.6 63.9 60.1 43.4 ... 212 225
    • a Basic thread length, B, is a reference dimension.
    • b Thissize with width across flats of 15 mm is not standard. Unless specifically ordered, M10 hex
    • bolts with 16 mm width across flats will be furnished.
    • All dimensions are in millimeters.
